  • R8 bearings

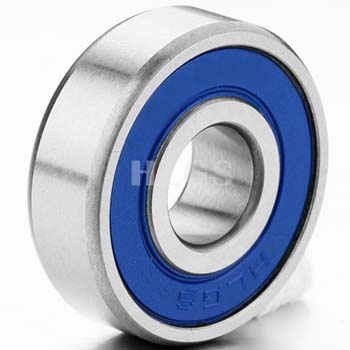

Product name : R8 bearings
Product No. : R8 Bearing 12.7x28.575x6.35mm
←[Previous Product]              [Next Product]→
Details:


R8 bearing has open, seals and shield types, and v-groove inner ring is available.

It is widely used in Automotive, CNC Machinery, Textile Machinery, Washing Machine, Power Tool etc.

Demesions:
Bearing No. R8R8-ZZ, R8-2RS, R8Z, R8RS, R8 ZZ, R8 RS
Bore diameter (d) 0.5 inch
Outer diameter (D)  1.125inch
Width (B) 0.25 inch
Basic Load Rating(N)
Dynamic(Cr) 1149
Static(Cor) 511
Max. Speed(RPM)
Grease 27000
Oil 32000
Weight(g)
Approx. 11.6
Grade P0, P6, P5
Radial Clearance C0, C2, C3

 Technical Data:
Part number rule
Dimension Tolerance
Radial clearance
Vibration
Grease
