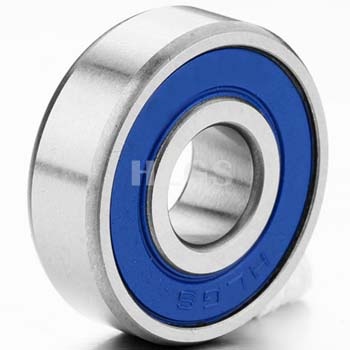

Product name : R6 bearings
Product No. : R6 Bearing 9.525X22.225X5.556mm
←[Previous Product]              [Next Product]→

R6 bearing has open, seals and shield types, and v-groove inner ring is available.

It widely used in precision instruments, micro motor, remote control model, etc

Bearing No. R6,R6-ZZ, R6-2RS, R6Z, R6RS, R6 ZZ, R6 RS
Bore diameter (d) 0.375 inch
Outer diameter (D) 0.8750 inch
Width (B) 0.2188 inch
Basic Load Rating(N)
Dynamic(Cr) 637
Static(Cor) 256
Max. Speed(RPM)
Grease 32000
Oil 38000
Approx. 9.02
Grade P0, P6, P5
Radial Clearance C0, C2, C3

 Technical Data:
Part number rule
Dimension Tolerance
Radial clearance

Ningbo Zhenhai Hualei bearing co.,ltd is a professional micro bearing manufacturer since 2001 in Ningbo,china. We offer a range size of deep groove ball bearings.... [View More]
Our company is equipped with advanced grinding automatic line, the assembly process using the automatic assembly line with lean production concept design,at the same time, we introduce advanced automatic detection equipment to replace traditional man... [View More]
