R155 bearings

R155 bearings
  • R155 bearings
Product name : R155 bearings
Product No. : R155 bearing
←[Previous Product]              [Next Product]→

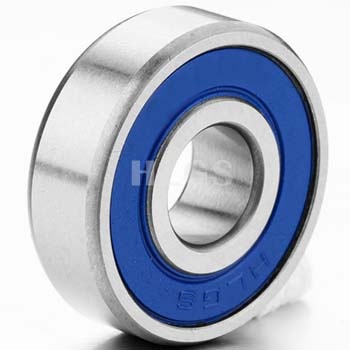

R155 bearing has open, seals and shield types, and v-groove inner ring is available.

It is widely used in Automotive, CNC Machinery, Textile Machinery, Washing Machine, Power Tool etc.

Bearing No. R155R155-ZZ, R155-2RS, R155Z, R155RS, R155 ZZ, R155 RS
Bore diameter (d) 0.1562 inch
Outer diameter (D) 0.3125 inch
Width (B) 0.1094 inch
Basic Load Rating(N)
Dynamic(Cr) 69
Static(Cor) 27
Max. Speed(RPM)
Grease 53000
Oil 63000
Approx. 0.51
Grade P0, P6, P5
Radial Clearance C0, C2, C3

 Technical Data:
Part number rule
Dimension Tolerance
Radial clearance

Ningbo Zhenhai Hualei bearing co.,ltd is a professional micro bearing manufacturer since 2001 in Ningbo,china. We offer a range size of deep groove ball bearings.... [View More]
Our company is equipped with advanced grinding automatic line, the assembly process using the automatic assembly line with lean production concept design,at the same time, we introduce advanced automatic detection equipment to replace traditional man... [View More]
