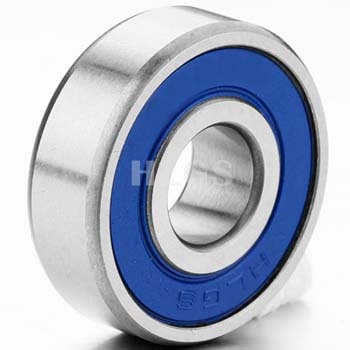

Product name : R10 bearings
Product No. : R10 Bearing 15.875x34.925x7.144mm
←[Previous Product]              [Next Product]→

R10 bearing has open, seals and shield types, and v-groove inner ring is available.

It is widely used in Automotive, CNC Machinery, Textile Machinery, Washing Machine, Power Tool etc.

Bearing No. R10R10-ZZ, R10-2RS, R10Z, R10RS, R10Z, R10 RS
Bore diameter (d) 0.625 inch
Outer diameter (D)  1.375 inch
Width (B) 0.2812 inch
Basic Load Rating(N)
Dynamic(Cr) 1585
Static(Cor) 735
Max. Speed(RPM)
Grease 21000
Oil 25000
Approx. 23.5
Grade P0, P6, P5
Radial Clearance C0, C2, C3

 Technical Data:
Part number rule
Dimension Tolerance
Radial clearance
