Product name : R166 bearings
Product No. : R166 bearing
←[Previous Product]              [Next Product]→

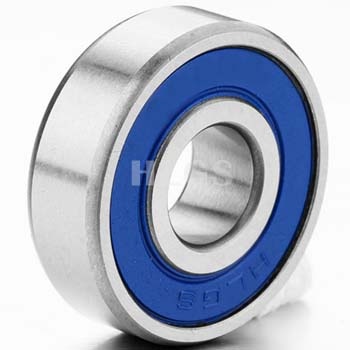

R166 bearing has open, seals and shield types, and v-groove inner ring is available.

It widely used in precision instruments, micro motor, remote control model, etc industries.

Bearing No. R166R166-ZZ, R166-2RS, R166Z, R166RS, R166 ZZ, R166 RS
Bore diameter (d) 0.1875 inch
Outer diameter (D) 0.3750 inch
Width (B) 0.1250 inch
Basic Load Rating(N)
Dynamic(Cr) 136
Static(Cor) 49
Max. Speed(RPM)
Grease 50000
Oil 60000
Approx. 0.81
Grade P0, P6, P5
Radial Clearance C0, C2, C3

 Technical Data:
Part number rule
Dimension Tolerance
Radial clearance
