SR188 bearings

SR188 bearings
Loading...
  • SR188 bearings

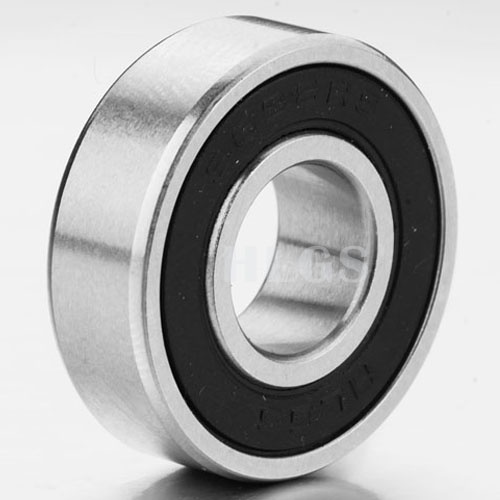

Product name : SR188 bearings
Product No. : SR188 bearing
←[Previous Product]              [Next Product]→
Details:


SR188 bearing has open, seals and shield types, and v-groove inner ring is available.

It is widely used in Automotive, CNC Machinery, Textile Machinery, Washing Machine, Power Tool etc.

Demesions:
Bearing No. SR188 SR188-ZZ, SR188-2RS, SR188Z, SR188RS, SR188 ZZ, SR188 RS
Bore diameter (d) 0.25 inch
Outer diameter (D) 0.5000 inch
Width (B) 0.1250 inch
Basic Load Rating(N)
Dynamic(Cr) 207
Static(Cor)   80
Max. Speed(RPM)
Grease 40000
Oil 50000
Weight(g)
Approx. 1.6
Grade P0, P6, P5
Radial Clearance C0, C2, C3

 Technical Data:
Part number rule
Dimension Tolerance
Radial clearance
Vibration
Grease
