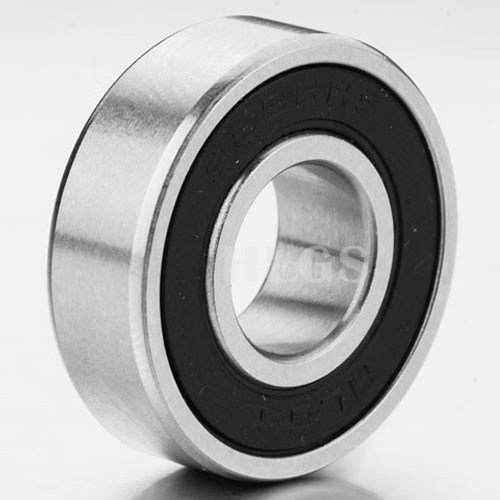

Product name : SR24 bearings
Product No. : SR24 Bearing 38.x66.675x11.112mm
←[Previous Product]              [Next Product]→
Details:


SR24 bearing has open, seals and shield types, and v-groove inner ring is available.

It is widely used in Automotive, CNC Machinery, Textile Machinery, Washing Machine, Power Tool etc.

Demesions:
Bearing No. SR24 SR24-ZZ, SR24-2RS, SR24Z, SR24RS, SR24 ZZ, SR24 RS
Bore diameter (d) 1.5 inch
Outer diameter (D) 2.625 inch
Width (B) 0.4375 inch
Basic Load Rating(N)
Dynamic(Cr) 4426
4426Static(Cor) 2446
Max. Speed(RPM)
Grease 5000
Oil 6000
Weight(g)
Approx. 140
Grade P0, P6, P5
Radial Clearance C0, C2, C3

 Technical Data:
Part number rule
Dimension Tolerance
Radial clearance
Vibration
Grease
