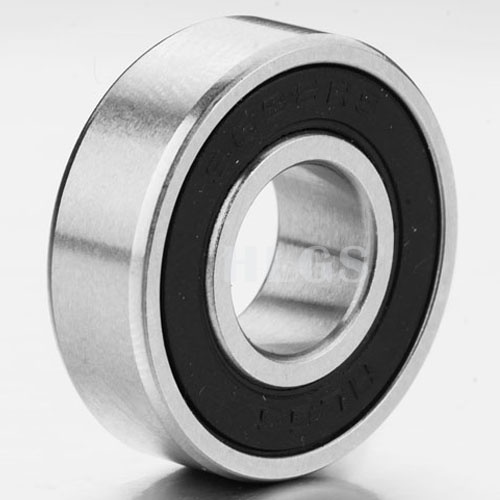

Product name : SR18 bearings
Product No. : SR18 Bearing 28.575x53.975x9.525mm
Details:
SR18 bearing has open, seals and shield types, and v-groove inner ring is available.
It is widely used in Automotive, CNC Machinery, Textile Machinery, Washing Machine, Power Tool etc.
| Demesions: | |
| Bearing No. | SR18 SR18-ZZ, SR18-2RS, SR18Z, SR18RS, SR18 ZZ, SR18 RS |
| Bore diameter (d) | 1.125 inch |
| Outer diameter (D) | 2.125 inch |
| Width (B) | 0.375 inch |
| Basic Load Rating(N) | |
| Dynamic(Cr) | 3492 |
| Static(Cor) | 1817 |
| Max. Speed(RPM) | |
| Grease | 8000 |
| Oil | 10000 |
| Weight(g) | |
| Approx. | 91 |
| Grade | P0, P6, P5 |
| Radial Clearance | C0, C2, C3 |
Technical Data:
Part number rule
Dimension Tolerance
Radial clearance
Vibration
Grease
