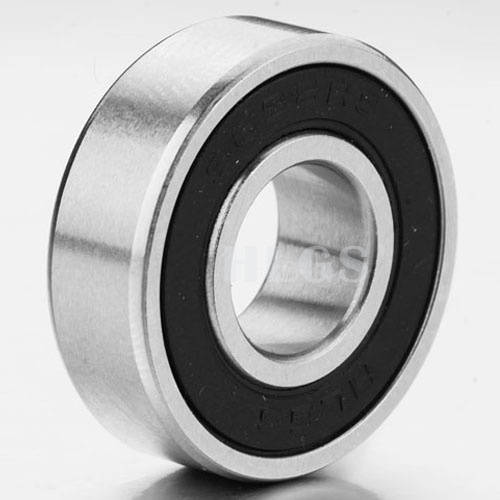

Product name : SR16 bearings
Product No. : SR16 Bearing 25.4x50.8x9.525mm
←[Previous Product]              [Next Product]→
Details:


SR16 bearing has open, seals and shield types, and v-groove inner ring is available.

It is widely used in Automotive, CNC Machinery, Textile Machinery, Washing Machine, Power Tool etc.

Demesions:
Bearing No. SR16 SR16-ZZ, SR16-2RS, SR16Z, SR16RS, SR16 ZZ, SR16 RS
Bore diameter (d) 1.000inch
Outer diameter (D) 2 inch
Width (B) 0.375 inch
Basic Load Rating(N)
Dynamic(Cr) 2652
Static(Cor) 1307
Max. Speed(RPM)
Grease 9000
Oil 11000
Weight(g)
Approx. 87
Grade P0, P6, P5
Radial Clearance C0, C2, C3

 Technical Data:
Part number rule
Dimension Tolerance
Radial clearance
Vibration
Grease
