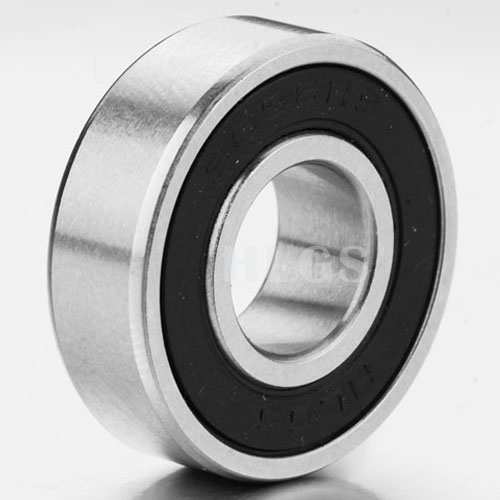

Product name : SR14 bearings
Product No. : SR14 Bearing 22.225x47.625x9.525mm
←[Previous Product]              [Next Product]→
Details:


SR14 bearing has open, seals and shield types, and v-groove inner ring is available.

It is widely used in Automotive, CNC Machinery, Textile Machinery, Washing Machine, Power Tool etc.

Demesions:
Bearing No. SR14R14-ZZ, SR14-2RS, SR14Z, SR14RS, SR14 ZZ, SR14 RS
Bore diameter (d) 0.875 inch
Outer diameter (D) 1.875 inch
Width (B) 0.375 inch
Basic Load Rating(N)
Dynamic(Cr) 2658
Static(Cor) 1307
Max. Speed(RPM)
Grease 10000
Oil 12000
Weight(g)
Approx. 78
Grade P0, P6, P5
Radial Clearance C0, C2, C3

 Technical Data:
Part number rule
Dimension Tolerance
Radial clearance
Vibration
Grease
