  • SR6 bearings

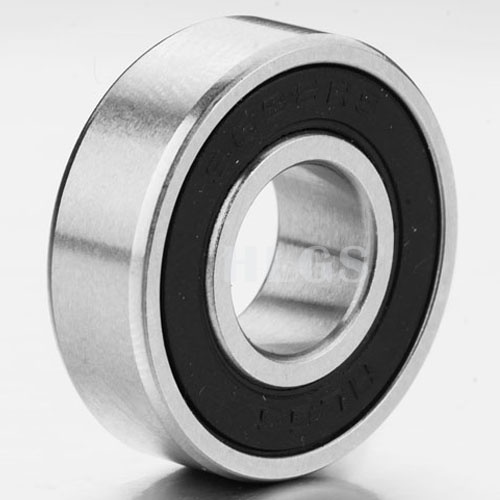

Product name : SR6 bearings
Product No. : SR6 Bearing 9.525X22.225X5.556mm
←[Previous Product]              [Next Product]→
Details:


SR6 bearing has open, seals and shield types, and v-groove inner ring is available.

It widely used in precision instruments, micro motor, remote control model, etc

Demesions:
Bearing No. SR6,SR6-ZZ, SR6-2RS, SR6Z, SR6RS, SR6 ZZ, SR6 RS
Bore diameter (d) 0.375 inch
Outer diameter (D) 0.8750 inch
Width (B) 0.2188 inch
Basic Load Rating(N)
Dynamic(Cr) 637
Static(Cor) 256
Max. Speed(RPM)
Grease 32000
Oil 38000
Weight(g)
Approx. 9.02
Grade P0, P6, P5
Radial Clearance C0, C2, C3

 Technical Data:
Part number rule
Dimension Tolerance
Radial clearance
Vibration
Grease
