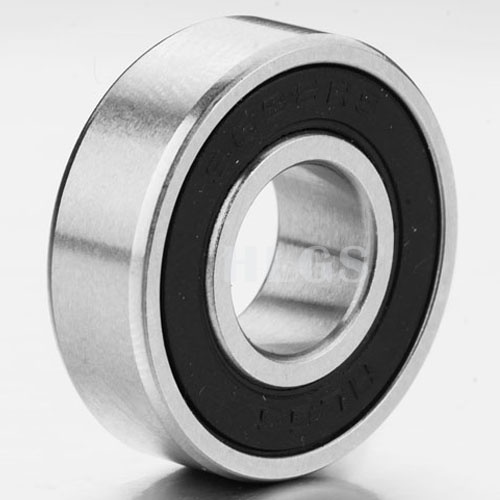

Product name : R4A Bearings
Product No. : SR4A Bearing 6.35x19.05x5.556mm
Details:
SR4A bearing has open, seals and shield types, and v-groove inner ring is available.
It is widely used in Automotive, CNC Machinery, Textile Machinery, Washing Machine, Power Tool etc.
| Demesions: | |
| Bearing No. | SR4A, SR4A-ZZ, SR4A-2RS, SR4AZ, SR4ARS, SR4A ZZ, SR4A RS |
| Bore diameter (d) | 0.25 inch |
| Outer diameter (D) | 0.7500 inch |
| Width (B) | 0.2188 inch |
| Basic Load Rating(N) | |
| Dynamic(Cr) | 446 |
| Static(Cor) | 161 |
| Max. Speed(RPM) | |
| Grease | 36000 |
| Oil | 43000 |
| Weight(g) | |
| Approx. | 7.48 |
| Grade | P0, P6, P5 |
| Radial Clearance | C0, C2, C3 |
Technical Data:
Part number rule
Dimension Tolerance
Radial clearance
Vibration
Grease
