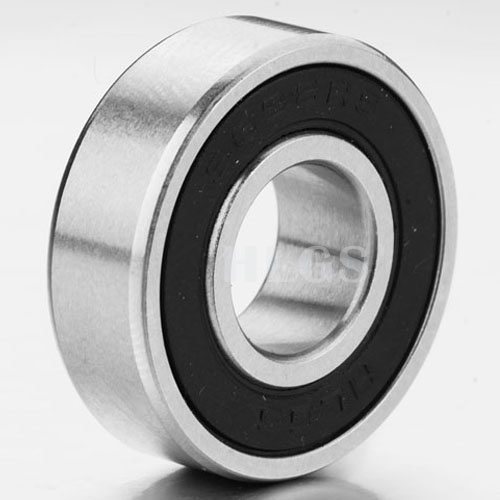

Product name : SR2A bearing
Product No. : SR2A Bearing 3.175x12.7x4.366mm
←[Previous Product]              [Next Product]→
Details:


SR2A bearing has open, seals and shield types, and v-groove inner ring is available.

It widely used in precision instruments, micro motor, remote control model, etc

Demesions:
Bearing No. SR2A, SR2A-ZZ, SR2A-2RS, SR2AZ, SR2ARS, SR2A ZZ, SR2A RS
Bore diameter (d) 0.125 inch
Outer diameter (D) 0.3750 inch
Width (B) 0.1562 inch
Basic Load Rating(N)
Dynamic(Cr) 121
Static(Cor) 39
Max. Speed(RPM)
Grease 56000
Oil 67000
Weight(g)
Approx. 1.04
Grade P0, P6, P5
Radial Clearance C0, C2, C3

 Technical Data:
Part number rule
Dimension Tolerance
Radial clearance
Vibration
Grease
