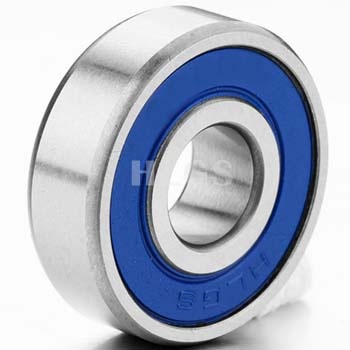

R22 bearings

R22 bearings
  • R22 bearings
Product name : R22 bearings
Product No. : R22 Bearing 34.925x63.5x11.112mm
←[Previous Product]              [Next Product]→

R22 bearing has open, seals and shield types, and v-groove inner ring is available.

It is widely used in Automotive, CNC Machinery, Textile Machinery, Washing Machine, Power Tool etc.

Bearing No. R22 R22-ZZ, R22-2RS, R22Z, R22RS, R22 ZZ, R22 RS
Bore diameter (d) 1.375 inch
Outer diameter (D) 2.5 inch
Width (B) 0.4375 inch
Basic Load Rating(N)
Dynamic(Cr) 4067
Static(Cor) 2247
Max. Speed(RPM)
Grease 7000
Oil 8000
Approx. 105
Grade P0, P6, P5
Radial Clearance C0, C2, C3

 Technical Data:
Part number rule
Dimension Tolerance
Radial clearance
